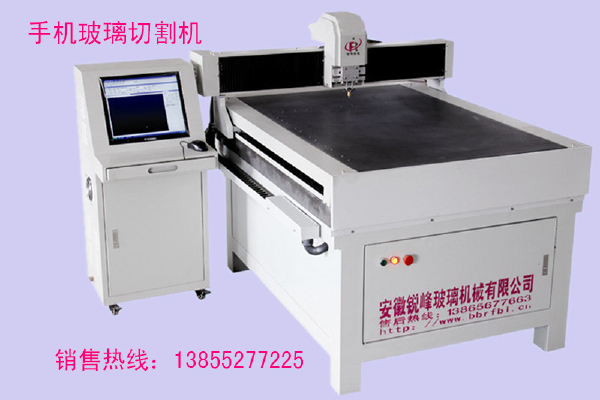

Model RF-1412Automatic Ultra-thin Glass Cutting machine
Introduction and Application:
This machine adopts foreign advanced technology and imported guide racks and rails, as well as other high performance spare parts, the application of CAD drawing presents a new concept glass cutting machine to the market. The higher stability, higher cutting precision, all main function can meet advanced standard. This machine main application scope is: Decorative glass, Mobile phone glass, Photoelectric glass, Cosmetic mirrors, Round shaped glass, Clock glass, Artwork glass and other cutting process area.
It can substitute the expensive imported CNC equipment, its super economic price and stability ranks the top place in glass deep-processing industry. It enjoys good popularity in the glass deep-processing lines.
A. Compose:
1. X Axis: NC motor, imported guide rack and rail’s transfer
2. Y Axis: NC motor, imported guide rack and rail’s transfer
3.Rack and rail: YYC( Taiwan)
4. Guide rail: Hiwin(Taiwan)
5.Control cable:National brand cable
6. Cutter box: double column spring cutter box
7.Cutters and holders: cutter( Germany), holders( own plant)
B. Main Characteristics:
1. Max glass sheet size:1300*1100(mm)
2. Cutting precision: Linear parallelism: ≤0.05mm,
Shaped cutting: ≤0.05mm( precision is adjustable)
3.Diagonal accuracy: ≤0.10mm
4. Glass thickness: 0.2-12mm
5. The tabletop has air floating function
6. Electricity power: AC 380V or 220V
7. Tabletop’s raw material: Electric rubber board or Marble
C. Equipment function’s introduction:
1. The machine can cut direct line or shaped patterns. The designed patterns can be guided by computer’s AUTOCAD graphics.
2. The tabletop has air floating function
3. X、Y Axis’ transfer or location adopted Taiwan direct line guide racks or rails, the cutting software’s repeat location precision is 0.05mm,our own plant’s knife box take double column spring, it is easy to adjust the pressure, it has higher cutting quality..
D. Supplying machine models’ scope and attached spare parts:
1. Model’s scope:8070 model, 1090 model, 1312 model,1915 model
2. Attached spare parts: Each model will be provided with 2 pcs diamond cutters, and a set of wrench.
E.Service and Guarantee:
Warranty time for one year, Life-long maintenance service
F. Acceptance:
According to our plant’s enterprise standard, and the technical requirements in contact’s clauses.
