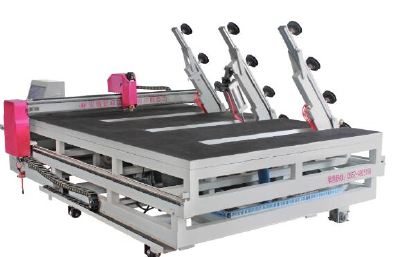

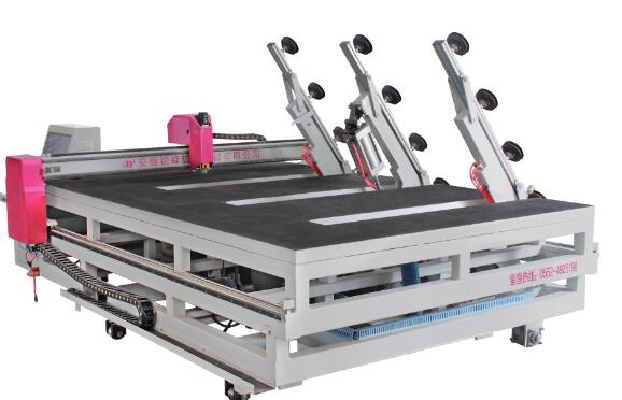

Model RF-2520 Automatic Multifunction Glass Cutting Machine

A. Item: RF-2520 Automatic Multifunction Glass Cutting Machine

B. Compose: RF-2520 Single side/ Single station automatic loading machine(mechanical type)
   RF-2520 semi-automatic glass cutting machine

C. Main function:

1. RF-2520 single side/ single station automatic loading machine

Technical parameters:

1). Glass size: 2000*1000mm( Min),3000*2000mm( Max)

2).  Glass thickness:3-19mm

3).  Loading glass cycle: 30-50 sec

4).  Max rack depth: 700mm

5).  Max loading weight:500kg

6).  Loading arms: 2 pcs or 3 pcs

7).  Vacuum suction cups quantity on each arm: 3 pcs or 4 pcs

8). Turning arms: single side

9) Working station: single station

10). Installation power: 380V/50HZ (adjustable)

11). Installed power: 4KW

12). Compressed air: 0.3MPA

13). Vacuum pressure: -50~70Kpa（adjustable）

2. RF-2520 automatic glass cutting machine
Technical parameters:

1).Max glass size: 2500*2000mm

2).Tabletop height: 900±50mm.

3). Glass thickness:3-19mm

4). Cutting precision: linear parallelism: ≤±0.2mm/m, diagonal precision: ≤±0.2mm/m (the precision data is based on cutting stage)

5) Cutting bridge speed:0-150m/min( adjustable)

6)Cutting bridge acceleration: ≥3.0m/s²

7) Cutting tool speed: ≥160m/min

8)Cutting tool acceleration: ≥ 6.0m/s²

9) Cutting head accuracy: ≤±0.15mm

10). Installation power: 380V/50HZ

11). Installed power:8KW

12). Compressed air: 0.6PA

D. Features:

Occupied small working site, easy operation, fast speed and high precision, save labor, etc.

E. Main function: Buildings, Household appliance and other cutting process area.
