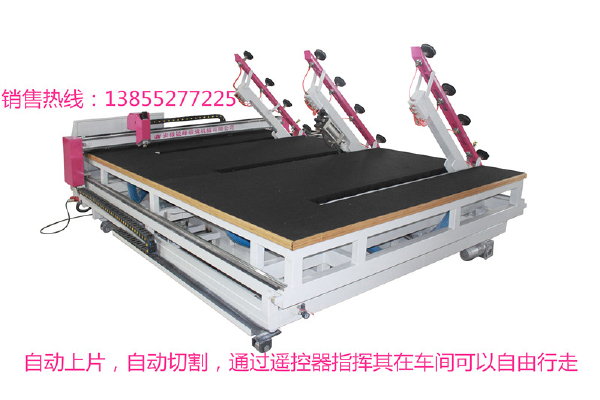

Model RF-3826Multifunction Automatic Glass Cutting Machine

Main function:

Occupying small working site, easy operation, fast speed and precision, save labor, the cutting machine can walk in the workshop under instructions.

Main application:

Buildings, furniture, hollow, automobile, furniture, artwork, and other glass cutting work.

A. Item: RF-3826 Multifunction automatic Glass Cutting Machine

B. Compose: RF-3826 Single side/ Single station automatic loading machine (mechanical type)
   RF-3826 automatic glass cutting machine

C. Technical parameters:

1. RF-3826 single side/ single station automatic loading machine

1). Glass size: 2500*2000mm ( Min), 4000*3000mm ( Max)

2).  Glass thickness:3-19mm

3).  Loading glass cycle: 30-50 sec

4).  Max rack depth: 700mm

5).  Max loading weight:900kg

6).  Loading arms: 3 pcs

7).  Vacuum suction cups quantity on each arm: 4 pcs

8). Turning arms: single side

9) Working station: single station

10). Installation power: 380V/50HZ (adjustable)

11). Installed power: 6KW

12). Compressed air: 0.3MPA

13). Vacuum pressure: -70~90Kpa（adjustable）

2. RF-4028 semi-automatic glass cutting machine

1).Max glass size: 3700*2500mm

2).Tabletop height: 900±50mm.

3). Glass thickness:3-19mm

4). Cutting precision: linear parallelism: ≤±0.25mm/m, diagonal precision: ≤±0.30mm/m (the precision data is based on cutting stage)

5）Cutting bridge speed: 0~150m/min.( adjustable）

6) Cutting bridge acceleration: ≥3.0m/s²
7) Cutting tool speed: ≥150m/min

8) Cutting tool acceleration: ≥6.0m/s²

9) Cutting head accuracy: ≤±0.15mm
10) Installation power: 380V/50HZ

11) Installation power: 8KW

12) Compressed air: 0.6PA
