Introduction:

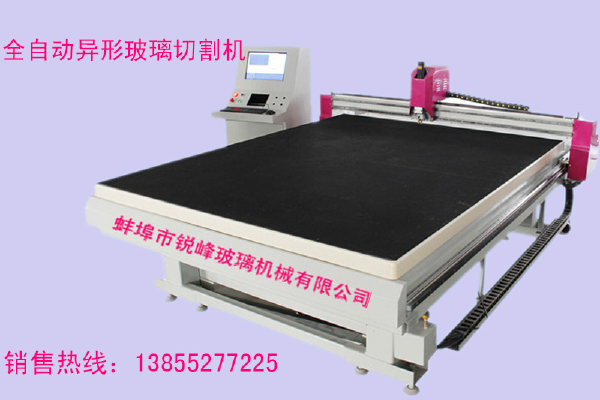

This machine introduced foreign advanced technology, it uses imported guide racks/rails and other high functional spare parts, it is a kind of brand-new concept cutting machine which was designed by Auto CAD. This machine has good stability and high precision, the technical parameters can achieve international first-class standard. It can meet building, furniture, mirror, round shape, clock, artwork glass and other different glass cutting demand. It can completely replace imported CNC equipment, Its strong cost performance and stability is the first choice for glass deep processing enterprises. It enjoys hot popularity in the vast number of glass deep processing manufacturing..

Compose:

1. X axis direction: guide racks and rails

2. Y axis direction: guide racks and rails

3.  Guide racks: KHK (Japan)

4.  Guide rails: HIWIN( Taiwan)

5. Motor: Servo Motor

6. Main electrical components: Omron( Japan), China people Co.

7. Cable: national brand

8. Cutter box: double column spring cutter box

9. Cutter wheel and holder: cutter holder is our own Co., cutter wheel( Germany)

Technical parameters

1). Glass size: 2500x2000x1400mm(max)

2).Cutting precision: Linear parallelism: ≤0.20mm/m, shaped glass cutting: ≤0.20mm/m

3). Diagonal accuracy: ≤0.15mm

4).Glass thickness:1.5-19mm

5) The table has air floating glass function

6).Power supply( installation): AC 380V or 220V

7). Tabletop: PVC (waterproof, anti-corrosion)

Main function：
1. Can cut straight or irregular shaped graphics, CAD graphics can be compatible with cutting graphics.

2. Tabletop has air floating function.

3. X,Y axis transmission and location devices are adopted Taiwan straight guide rails and KHK guide racks, cutting software repeat location precision 0.05mm, cutter box is double column spring device, it is easy to regulate the pressure, and its cutting is has good cutting effect.

Supply scope and spare parts:

1. Supply scope: model 8070, model 1313, model 16135, model 2520

2. Attached spare parts: 10 pcs cutters and one set of wrench

Service and Guarantee:

One year warranty time, life-long maintenance.

Acceptance：

According to our company’s enterprise standards, and technical requirements stipulated in the contact.
